Silent Chain

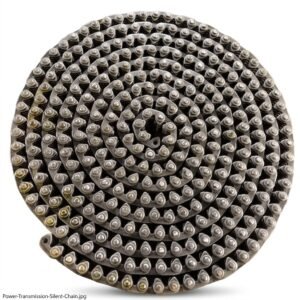

A silent chain (or inverted-tooth chain) is a power transmission component that uses flat, interlocking toothed plates to mesh with sprockets. Designed to minimize noise, vibration, and friction, it operates much more smoothly than standard roller chains and is widely used in automotive timing drives, transfer cases, and high-speed industrial machinery.

Key Features and Design

Unlike traditional roller chains that rely on cylindrical pins and rollers, the silent chain features flat link plates with teeth on the bottom. These plates engage directly with the sprocket.

• Noise Reduction: As the chain wraps around the sprocket, the teeth engage the sprocket teeth with minimal sliding friction and impact. This smooth, gear-like meshing action is what makes the chain relatively "silent" compared to conventional bush or roller chains.
• Load Distribution: Power is distributed across multiple teeth along the arc of contact, allowing the chain to handle higher loads and speeds while reducing overall wear and tear.
• Wear Compensation: As the silent chain wears and its pitch increases, its design allows the links to ride up slightly on the sprocket teeth, automatically compensating for stretch and maintaining optimal tension and meshing.

Common Applications

Because of their high power density, quiet running, and efficiency, silent chains are a go-to choice in demanding mechanical systems:

• Industrial Machinery: Ideal for high-speed, high-power drives (e.g., printing presses, compressors, and pumps) where space is limited and vibration needs to be minimized.
• Specialty High-Performance: Applications demanding precise timing and minimal backlash.

Maintenance

While highly durable and efficient, silent chains require proper and regular lubrication. Proper lubrication is vital to prevent metal-to-metal wear and joint deterioration.

Glass conveyor silent chains (or inverted tooth chains) are highly durable, heat-resistant alloy steel belts designed to transport fragile glass containers smoothly at high speeds. They offer a flat, non-slip, and temperature-controlled surface that prevents bottle checking.

Key Features and Benefits

• Inverted Tooth Design: Ensures quiet operation, minimizes speed variations, and drastically reduces vibration compared to standard roller chains.
• Temperature Resistance: Handles extreme conditions found in glass annealing lehrs and hot-end handling.
• Airflow Optimization: Chains can be designed with spacing washers or double-stacked links to promote airflow and efficient cooling of the glass products.
• Wear Protection: Many models incorporate specialized wear-resistant pins and links to withstand the abrasive, high-temperature environments of glass manufacturing.

Standard Specifications

• Material: Typically constructed from hardened alloy steel or specialized stainless steel.
• Pitch: Commonly available in 1/2-inch and 1-inch extended pitch configurations.
• Width: Customizable link and pin lengths, typically ranging from 100mm to 300mm (or wider depending on the conveyor system).
